Item

Specification

Model

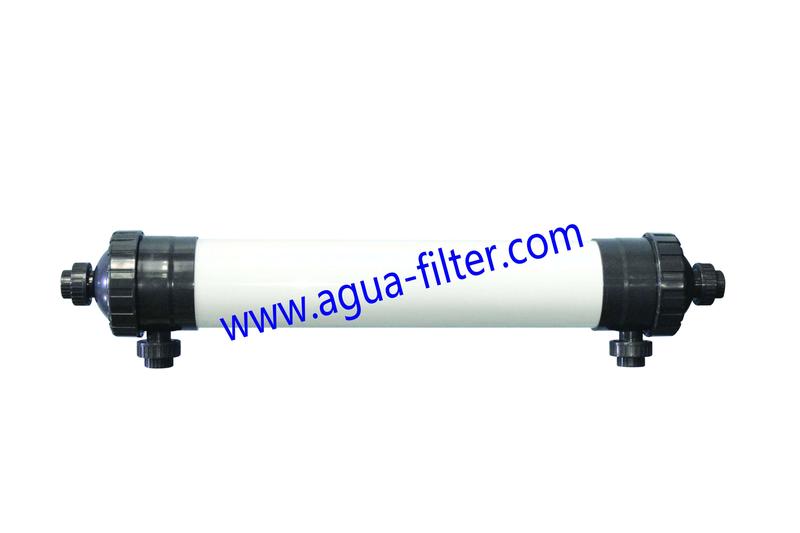

UF-PVC-200

Dimension

Ø200mm × 1480mm

Surface Area (m²)

26  m²

Design Flowrate

1300 - 2130 L/hr

Hollow Fiber Material

PVC

Pore Size (MWCO)

100,000 Dalton  (0.01 μm)

Connection Size

Ø50mm (DN40)

Housing Material

UPVC

Sealing Material

Epoxy  resin & Polyurethane

Operation Temperature

5 ~ 45℃

pH

2 ~ 12

Max. Feed Water Pressure

0.3 Mpa

Max. TMP

0.2 Mpa

Operation Mode

Dead End or  Cross-flow Filtration

(Pressured Type  Inside-to-Out)

Max.Backwash Pressure

0.2 Mpa

Backwash Flux

100 ~ 150 L/hr.m²

Backwash Time

30 ~ 60 seconds each time

Backwash Frequency

Every 30 ~ 60  minutes

Chemical Dosing for Backwash

15 - 20 ppm NaCLO

 Permeate  Turbidity

＜0.1 NTU

Permeate SDI

＜1
